Inspection Chamber 300 & 400 - 6998

Inspection Chamber 300 & 400 - 6998


Code
Product		 Outlets   Shaft Diameter Ambalaj
Packing
Kg/Pc		 m³/Ad

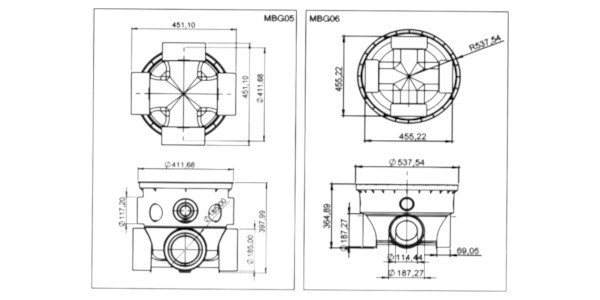

MBG05  300 Round Manhole Applicable w. Corrugated Pipe 150 Krg & 110 Pvc 300 1 2.54 2.54 0.0656
MBG06 400 Round Manhole Applicable w. Corrugated Pipe 150 Krg & 110 Pvc 400 1 2.08 2.08 0.1011

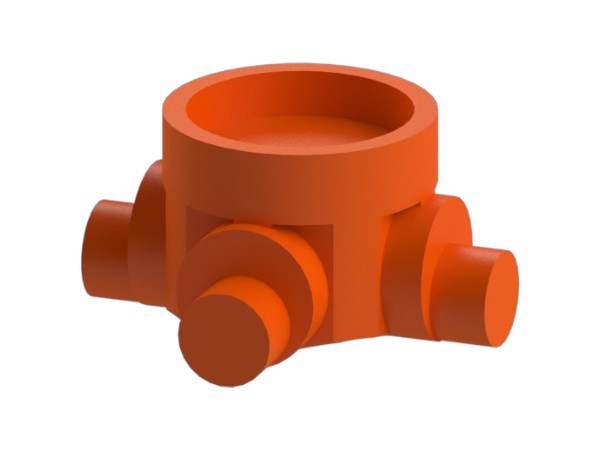

Inspection Chamber 600 - 6998

Inspection Chamber 600 - 6998


Code
Product		  Outlets  Shaft Diameter
Packing		 Kg/Ad
Kg/Pc		 m³/Ad
MBA03 600 Inspection Chamber App. Corr. Pipe 200 Krg & 250 Pvc 600 1   17 1.08

Inspection Chamber 1000 - 6995

Inspection Chamber 1000 - 6995


Code
Product		  Outlets  Shaft Diameter Ambalaj

 Kg/Ad
Kg/Pc		 m³/Ad

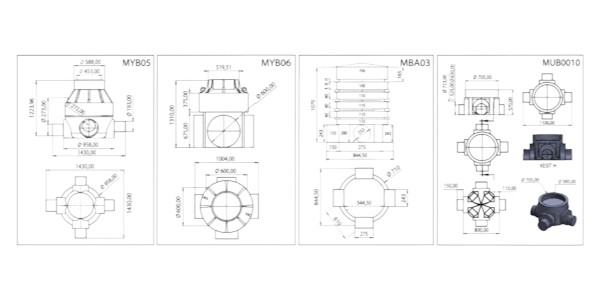

MYB02  1000 Inspection Chamber App. Corr. Pipe ∅ 150 Corrugate 800 1 35 35 2.50
MYB03 1000 Inspection Chamber App. Corr. Pipe ∅ 200 Corrugated 800 1 35 35 2.50
MYB04 1000 Inspection Chamber App. Corr. Pipe ∅ 250 Corrugated 800 1 35 35 2.50
MYB05  1000 Inspection Chamber App. Corr. Pipe ∅ 300 Corrugated 800 1 35 35 2.50
MYB06 1000 Inspection Chamber App. Corr. Pipe ∅ 400 & ∅ 500 & ∅ 600 Krg 800 1 35 35 1.32



×
